What Are the Best Sauna Layouts for Modern Homes 2026?

The Short Answer

The best home sauna layout depends on floor space, user count, and heater type. A 4 × 5 ft straight-bench layout suits one to two users, a 5 × 7 ft L-bench layout fits two to three, and a 6 × 8 ft two-tier layout seats four to six. Final heater, bench, door, and vent placement must follow the heater manual and local code.

Below you will find a comparison table of all ten layouts, then a dimensioned floor plan and planning notes for each one. If you are still deciding between sauna formats rather than layouts, start with our guide to sauna types and our home sauna decision guide, then come back here for room-by-room placement.

Compare All 10 Layouts

Electrical figures are heater-power classes derived from the manufacturer adjusted-volume method explained in the heater-sizing section, checked against published heater volume ranges. They are planning figures, not wiring instructions: your heater manual, a licensed electrician, and local code determine the final circuit.

Layout 1: Compact Linear Sauna, 4 × 5 ft

This is the smallest layout in the guide that still delivers a real bench and a real aisle. It fits a bathroom alcove, a large closet, or the dead corner of a laundry room, and it works with either a small electric traditional heater or infrared panels.

The single bench runs the full 5-ft wall at 24 in deep, which seats one adult comfortably or two people who know each other well. At a 7-ft ceiling the room encloses about 140 cu ft, or roughly 4.0 m³, which puts a well-insulated build in the 4.5 kW heater class on a dedicated 240 V circuit. A glass door borrows light from the host room and keeps the space from feeling like a cabinet.

The honest limitation: this is a seated-only sauna. Nobody reclines on a 60-in bench, and there is no second tier to choose a milder temperature. If reclining matters to you, step up to Layout 2 or Layout 4.

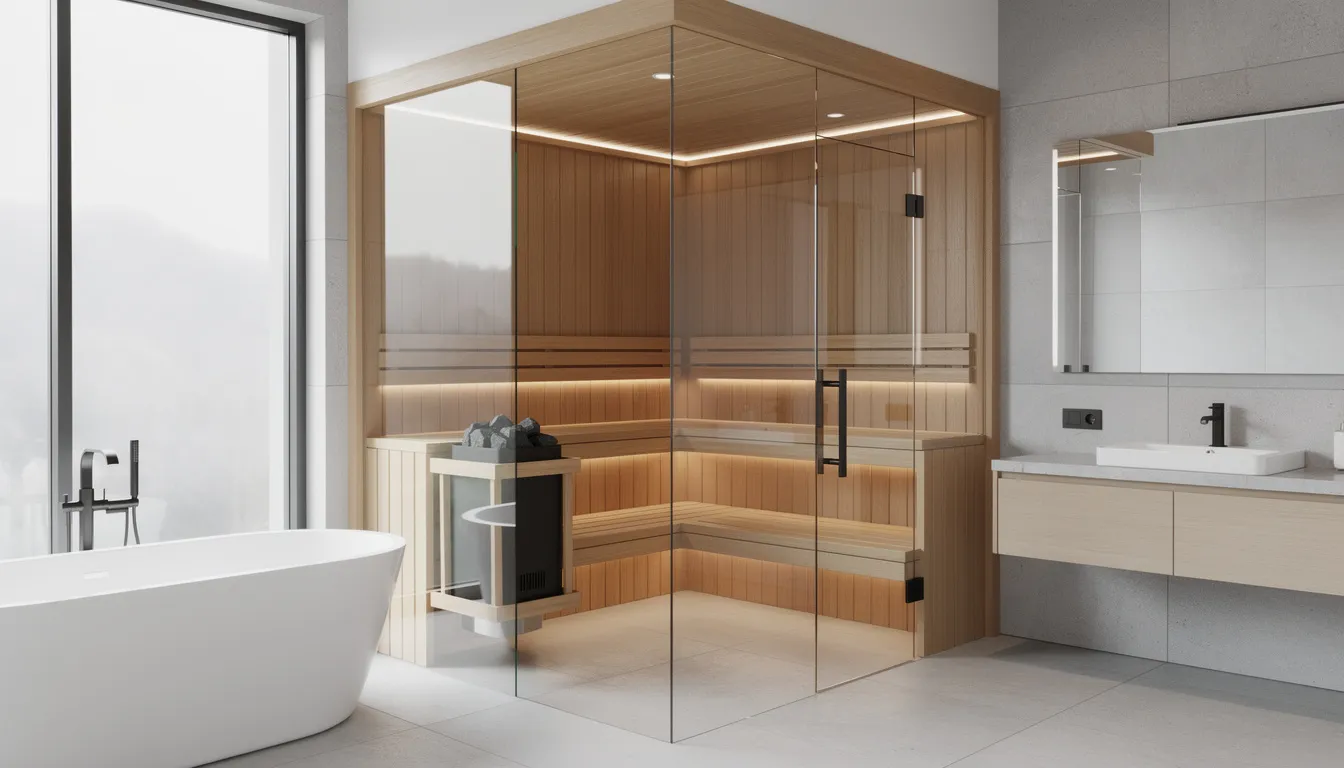

Layout 2: L-Bench Ensuite Sauna, 5 × 7 ft

A 5 × 7 ft footprint beside a primary-suite bathroom is the classic couple’s sauna. The L-bench arrangement earns its extra framing cost here: it adds a second seating angle for conversation and turns the long run into a reclining spot.

The 7-ft main run gives you an 84-in bench, long enough for one adult to fully recline, and the corner return adds seating for a third person. A 16-in step bench in front of the main run doubles as a lower, cooler seat and keeps the floor aisle at roughly 20 in. Set the step at 16–18 in above the floor and the upper bench at 34–38 in.

At a 7-ft ceiling the room encloses about 245 cu ft, roughly 6.9 m³, which lands in the 6 kW heater class on a 240 V circuit; a glazed door or added window pushes the calculation up, so re-run the adjusted-volume method before ordering. Mount the heater on the wall opposite the main run with a guard rail if the manual requires one, and hinge the door so its outward swing clears both the step bench and the heater clearance zone.

Layout 3: Two-Tier Basement Family Sauna, 6 × 8 ft

A finished basement is the easiest place in most houses to give up 48 sq ft, and a 6 × 8 ft room is the smallest footprint that seats a family of four to six on two proper tiers.

Run both tiers the full length of the 8-ft wall: a 24-in upper bench at about 36 in high and an 18-in lower bench at about 18 in, which leaves a 30-in floor aisle. The lower tier is the step, the kids’ seat, and the cooler option all at once. Skip the return bench on the opposite wall unless your room is at least 7 ft deep — in a 6-ft room it pinches the aisle below 20 in.

Get the volume math right before choosing a heater. A 6 × 8 ft room at a 7-ft ceiling encloses about 336 cu ft (9.5 m³), and about 384 cu ft at 8 ft — not the 250–300 cu ft sometimes quoted. That volume puts the room in the 9 kW heater class on a dedicated 240 V circuit. Interior and basement installations frequently use mechanical ventilation — the approved exhaust destination, duct path, opening sizes, and control method depend on the heater manual, the building’s moisture strategy, and local mechanical code — and the long wiring run back to the panel belongs in the budget. Fit the heater’s guard rail: this is the layout where children share the room. If you would rather buy this geometry than build it, see our guide to sauna kits with two-tier benches.

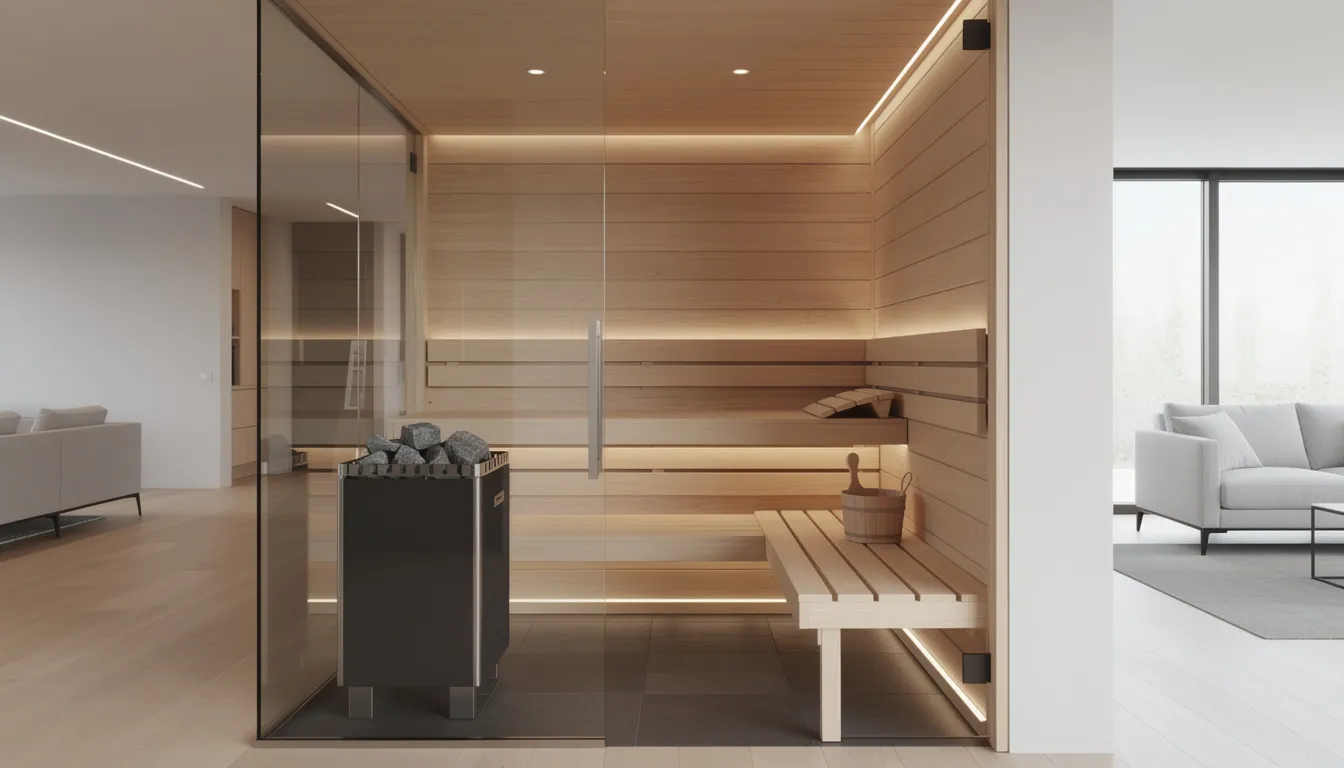

Layout 4: Glass-Front Wellness Niche, 5 × 6 ft

In an open-plan primary bathroom, a glass-fronted sauna reads as furniture rather than construction. The full-glass wall keeps sightlines open and daylight flowing — and it is also the single biggest factor in sizing the heater, which is why this layout gets the largest heater of any small room in this guide.

The 72-in upper bench allows full-length reclining for users up to about 6 ft tall, with the 14-in step preserving a 22-in aisle. Keep the pillar heater against the solid side wall at the glass end so it reads as a design feature without putting the glazing inside its clearance zone; the manual’s figures for glass and combustible clearances both apply.

Here is the sizing reality that generic guides miss: on solid-wall math this 210 cu ft (5.9 m³) room would take a 6 kW heater, but a fully glazed 6 × 7-ft front adds roughly 42 sq ft (3.9 m²) of uninsulated surface. Under the manufacturer adjusted-volume method, that lifts the calculated volume to about 10.6 m³ — the 9 kW heater class. Plan privacy with switchable or tinted glass rather than curtains, which do not belong in a hot room.

Layout 5: Walk-Through Sauna Between Pool and Shower, 4 × 9 ft

A long, narrow room with a door at each end turns the sauna into a heated passage between the pool deck and the indoor shower. It is an unusual footprint that suits one specific house extremely well — and it has two door swings and constant wet traffic to plan around.

Keep the geometry strict: bench on one side, nothing on the other. The 24-in bench seats two to three, storage for towels slides underneath, and the clear 24-in passage means a dripping swimmer can cross without brushing anyone’s knees. Both doors swing outward, away from the hot room, and the heater lives at one short end so nobody walks past it wet.

The room encloses about 252 cu ft (7.1 m³); with two glazed doors added under the adjusted-volume method it lands in the 8–9 kW heater class. Specify slip-resistant, frost-tolerant tile and a floor drain — this is the one indoor layout in this guide that gets genuinely wet in normal use. A compact wood stove at the far end is a workable alternative where code and chimney routing allow it.

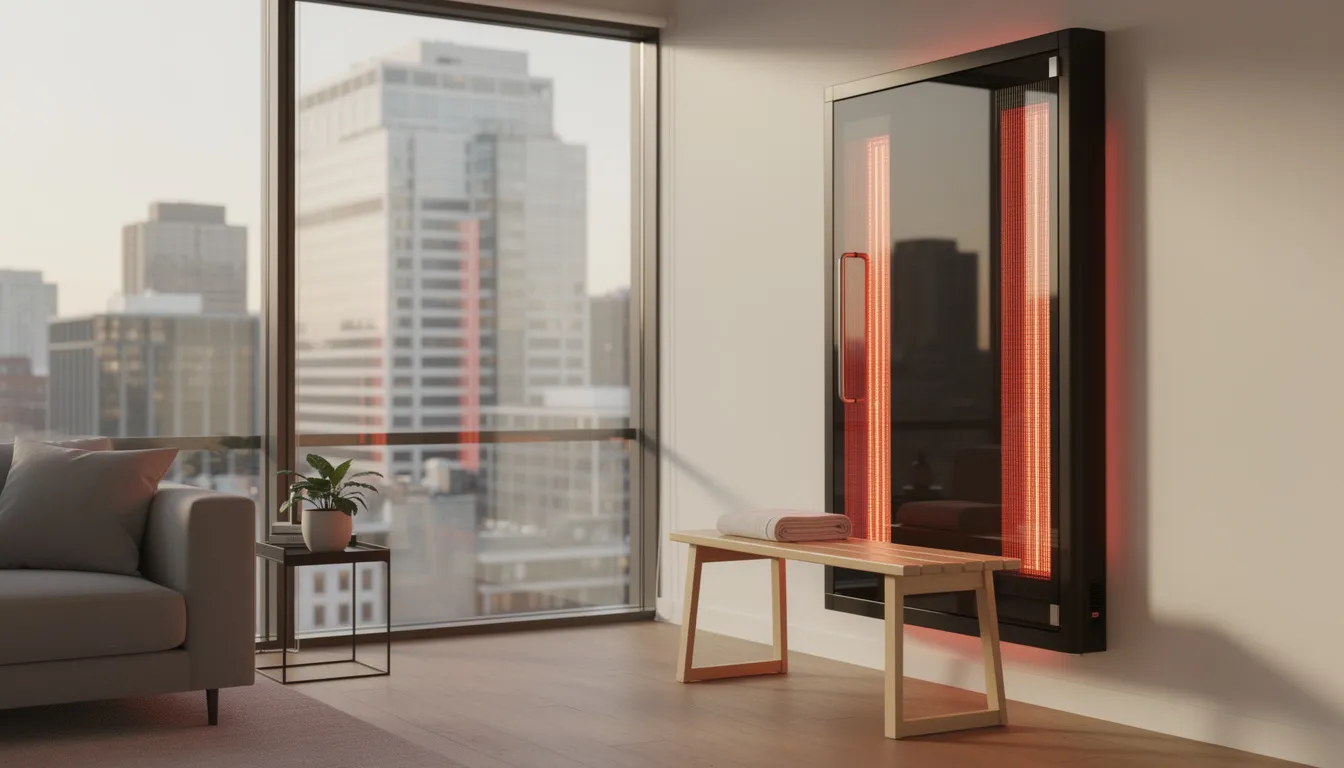

Layout 6: Prefab Infrared Cabin for Tight Urban Spaces, ≈ 4 × 4 ft

Apartments, lofts, and home offices usually cannot host a built sauna, and this is the layout where a prefabricated infrared cabin genuinely wins: it arrives as a fixed-footprint unit, plugs into an ordinary circuit in many one- and two-person sizes, and needs no site-built ventilation.

Because the cabin is engineered as a unit, layout planning inverts: instead of designing benches and vents, you verify the space around the box. Infrared cabins generally require less internal heater-clearance space than traditional electric or wood-burning saunas, but the complete cabin still requires the side, rear, ceiling, ventilation, and door clearances specified by its manufacturer. Check the ceiling height against the assembled cabin height plus the manual’s top clearance, confirm the door swing stays clear of furniture, and keep the cabin’s built-in vents unblocked so it can exchange air with the room.

Many one- and two-person cabins run on a dedicated 120 V, 15–20 A circuit — Dynamic Saunas’ owner’s manual, for example, specifies a 120 V 15 A dedicated circuit for its one- and two-person carbon models and 20 A for three-person models, with no extension cords or adapters — while the rating plate on your specific model is the authority, and larger multi-person cabins can require 240 V. If you are choosing a unit for this layout, our roundup of 2-person saunas for small spaces compares current models at this footprint.

Layout 7: U-Shaped Social Sauna, 8 × 8 ft

When the sauna is meant to host six to eight people at once, seating geometry matters more than anything else. The U-bench wraps three walls so everyone faces the conversation, with two tiers at the back for temperature choice.

Two-tier seating on the back wall gives four adults the hot seats, the 20-in side benches add two to four more at milder positions, and the center step keeps the climb to the upper tier civilized. Round the exposed bench corners — eight people moving through one hot room will find every sharp edge. Keep at least 36 in of clear center floor so nobody straddles anyone to leave.

At 8 × 8 ft with a 7-ft ceiling the room encloses about 448 cu ft (12.7 m³), squarely in the 9 kW heater class; an 8-ft ceiling or added glazing lifts the adjusted volume enough that you should check the next heater size and its heavier circuit before wiring. A mid-size wood-burning stove works here where chimney routing allows. Fit the guard rail: this is the layout with the most bodies per square foot of clearance zone.

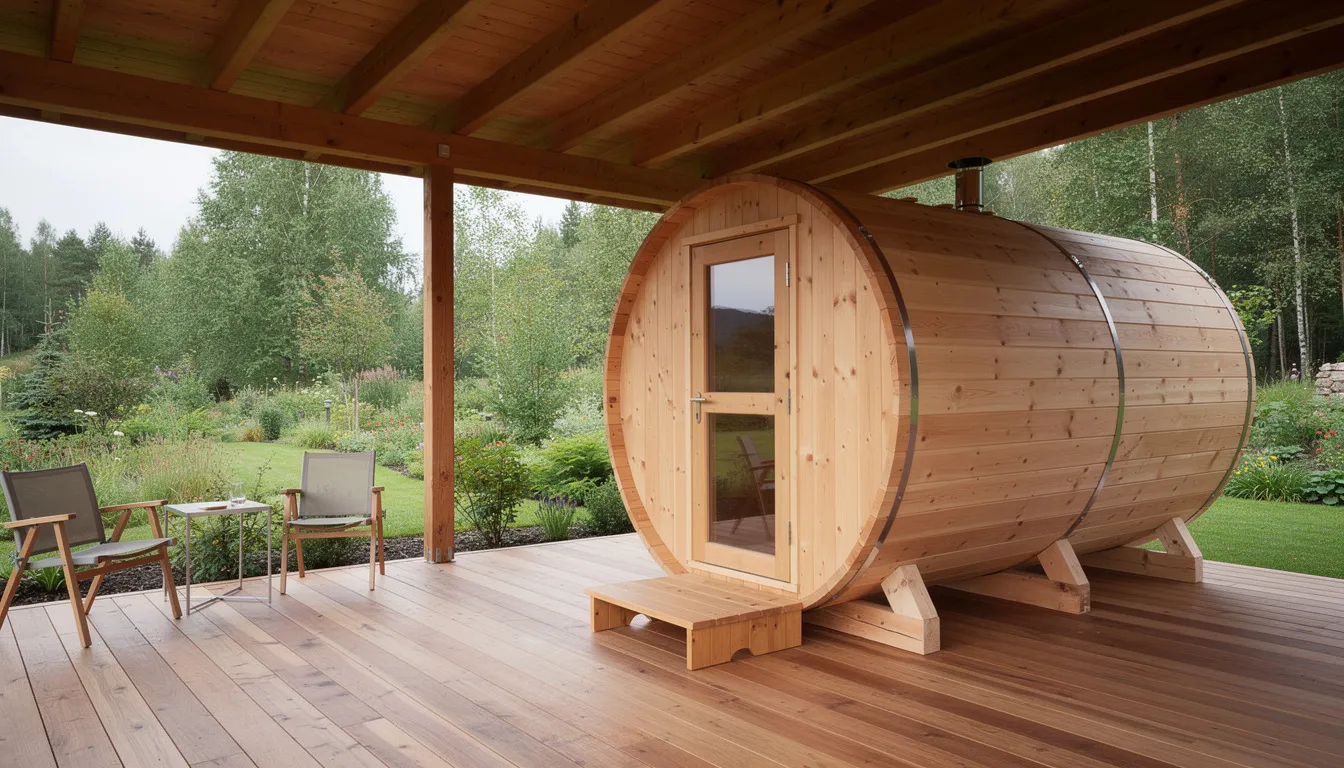

Layout 8: Covered-Patio Barrel Sauna, 6 ft dia × 7 ft

A barrel is the fastest route to an outdoor sauna: it arrives as a kit, sits on a compact pad, and its geometry is fixed by the maker. Your layout work is siting, base prep, and understanding what the curve does to interior space.

The two facing benches seat two adults per side in comfort — four total — and the 32-in floor aisle feels generous until you stand up: the curve means shoulder room tightens above bench height, and taller users stand upright only near the centerline. That is the real tradeoff of the format, and it is a geometric fact of the shape rather than a build-quality issue.

The roughly cylindrical interior encloses on the order of 200 cu ft (about 5.6 m³), which puts electric versions in the 6 kW class on an outdoor-rated 240 V circuit; wood-fired stoves trade the circuit for a chimney and combustion-air planning. Site the barrel on a level, drained pad or a deck confirmed for the load — use the installed operating load, meaning the sauna structure, heater, heater stones, accessories, and anticipated occupants together, and have a builder verify joists for elevated decks. If winter performance drives your outdoor decision, our cold-climate outdoor sauna guide covers insulation and roofing differences between barrel and cabin formats.

Layout 9: Panoramic Glass Cube Sauna, 7 × 7 ft

On a lot with a view, a freestanding cube with one fully glazed wall turns the sauna into the best seat on the property. The layout rule is simple: benches face the glass, equipment hides on the solid walls.

Both tiers face the glass, seating three to four with everyone getting the view. Leave the floor by the glazing clear as a standing and cool-off zone, and keep the heater against a solid wall so its clearance zone never includes a glass panel — if your model publishes a specific glass clearance, that figure governs. A compact wood stove on the solid side wall is the off-grid alternative.

Expect the glazing to dominate heater sizing. The bare room encloses about 343 cu ft (9.7 m³), but a full-height 7 × 7-ft glass wall adds roughly 49 sq ft (4.6 m²) of uninsulated surface, lifting the adjusted volume to about 15 m³ and the requirement into the ≈ 11 kW heater class — a heavier circuit than the footprint suggests. High-performance insulated glazing units reduce running losses and condensation but do not change how manufacturers ask you to size the heater, so calculate with the glass counted. This layout shares every cold-weather consideration in our cold-climate guide.

Layout 10: Integrated Spa Wing with Multiple Zones, 6 × 8 ft Sauna in a 16 × 12 ft Suite

The full wellness wing is three rooms doing one job: a hot room, a rinse zone, and a place to rest between rounds. The sauna itself is simply Layout 3 dropped into a larger, waterproofed suite — the new planning work is circulation, drainage, and electrical separation.

Design the circulation loop first: out of the sauna, straight to the rinse zone, then to a seat — short, obvious, and slip-safe in that order. That means non-slip tile rated for wet areas throughout the corridor and shower zone, a floor drain positioned where dripping actually happens, hooks and a bench just outside the sauna door, and door swings that never collide mid-loop. Waterproofing behind the tile and a properly sloped drain plane are where spa wings succeed or fail, so this is the one layout in this guide that genuinely needs a contractor from day one.

Electrically, treat the zones separately: the sauna heater takes its own 240 V circuit in the 9 kW class (the 6 × 8 ft math from Layout 3), and if you add a cold plunge, its chiller runs on its own dedicated GFCI-protected circuit per the plunge manufacturer’s electrical requirements — never shared with the heater. Keep lighting and any audio on ordinary lighting circuits with their controls outside the hot room unless rated otherwise.

Ventilation: Match the Vent Plan to the Heater System

There is no single correct vent position for every sauna, and any guide that gives you one universal rule is simplifying past the point of usefulness. Manufacturers genuinely differ: HUUM’s published guidance runs the exhaust to the wall opposite the stove no more than about 60 cm (24 in) above the floor, and notes that with mechanical circulation the exhaust height matters less — while many long-standing heater manuals describe the classic gravity pattern of a low intake beside the heater and a high exhaust on the far wall. Both are correct for the systems they describe. Plan by system type, and let the installation manual for your specific heater or stove override everything below.

Electric heater with mechanical (fan-driven) ventilation

Common in basements, interior bathrooms, and tightly built modern homes. Supply air typically enters high, near or above the heater, and the fan-driven exhaust pulls from low on the opposite side of the room — the pattern HUUM describes, with the exhaust within about 24 in of the floor. Because the fan does the work, air mixes down through the bathing zone instead of stratifying. The approved exhaust destination, duct path, opening sizes, and control method depend on the heater manual, the building’s moisture strategy, and local mechanical code — but never terminate sauna exhaust inside an unventilated concealed cavity such as a wall or ceiling void.

Electric heater with gravity (passive) ventilation

The traditional arrangement where fresh air can enter and leave the room without a fan: a low supply opening beside or under the heater and an exhaust on the opposite wall placed higher than the supply, often under or behind a bench. Harvia’s sauna planning and installation instructions describe the same supply position for gravity exhaust — below or next to the heater — while placing the exhaust near the floor as far from the heater as possible, with the exhaust opening about twice the supply’s diameter; the same document places the supply above the heater when mechanical exhaust is used. A gap under the sauna door can serve as part of the supply path in small rooms. Some heater manuals — particularly for models with a high-limit sensor that needs cooler intake air — specify their own intake position, which is exactly why the manual wins.

Wood-burning stove

The fire changes the physics: the stove consumes air and the chimney provides constant draft, acting as the primary exhaust. Provide a dedicated combustion-air supply near the stove sized to the stove manufacturer’s stated opening, and follow the stove manual and local mechanical and fire codes for everything from floor protection to chimney clearances. HUUM specifically notes that a wood-fired sauna running mechanical ventilation needs an additional supply for combustion air near the hearth.

Prefabricated infrared cabin

Infrared cabins ventilate through openings built into the cabin itself and exchange air with the surrounding room — there is no site-built ducting to design. Keep the cabin’s vents unobstructed, keep the host room itself reasonably ventilated, and follow the cabin manual’s clearance and airflow requirements.

Two habits serve most builds: some designs include a separate closable drying vent, high on a wall or at the ceiling, kept shut during heating and bathing and opened afterward so the room dries — Harvia’s planning instructions show it as an optional vent and note the room can also be dried simply by leaving the door open after bathing. Add one only where it is consistent with your heater or sauna-room ventilation design, and re-check vent sizing whenever you upsize the heater. For a deeper treatment of airflow rates and vent construction, see our sauna ventilation guide.

Heater Sizing: Use the Adjusted-Volume Method

Every electrical figure in this guide comes from the sizing method heater manufacturers actually publish, not from a flat rule of thumb. It takes three steps.

Step 1 — base volume. Multiply interior length × width × ceiling height. For Layout 3, that is 6 × 8 × 7 ft = 336 cu ft, or about 9.5 m³ (and about 384 cu ft at an 8-ft ceiling). Harvia’s baseline for a well-insulated, wood-paneled room is on the order of 1 kW of heater output per cubic meter of volume — roughly 1 kW per 35 cu ft, noticeably more demanding than the “1 kW per 50 cu ft” shorthand that circulates online.

Step 2 — adjust for surfaces. Glass, stone, tile, and other uninsulated surfaces soak up heat, so they count as extra volume. Harvia’s published factor treats each square meter (about 10.8 sq ft) of such surface as adding 1.2 m³ to the calculated volume, with uninsulated log walls carrying a larger factor still. This is why Layout 4’s little 5 × 6 ft room lands in the 9 kW class: its fully glazed front adds roughly 3.9 m² of glass, lifting a 5.9 m³ room to an adjusted 10.6 m³.

Step 3 — pick inside the published range. Every heater model lists a minimum–maximum room volume. Choose a model whose range comfortably contains your adjusted volume — Harvia’s guidance is to land near the middle of the range and avoid models where your number sits at the edge, stepping up to the next size instead. The ranges are concrete and public: Harvia’s 4.5 kW KIP datasheet lists 2.8–6.0 m³, and the 9 kW Cilindro PC90 product page lists 8–14 m³ — which is why Layout 3’s adjusted 9.5 m³ sits comfortably mid-range for a 9 kW class unit. An undersized heater runs long and hard, which shortens its life; the published range exists to prevent exactly that.

Treat the resulting kilowatt class as a planning figure. The final selection, circuit ampacity, wire gauge, and breaker are set by the chosen heater’s manual, a licensed electrician, and local code.

Planning Rules That Apply to Every Layout

Ceiling height. Target about 7 ft for residential hot rooms: low enough to keep heat where bathers sit, high enough for headroom on an upper bench. Harvia’s bench-planning guidance recommends 1100–1200 mm (about 43–47 in) between the upper bench and the ceiling, noting that excess space above bathers’ heads simply wastes heat near the ceiling — with a roughly 36-in upper bench, that lands near a 7-ft ceiling. Manufacturers also publish their own minimum ceiling heights and maximum mounting heights — verify both against your heater before framing, and treat ceilings much above 8 ft as a heater-sizing problem, since the extra volume all has to be heated.

Bench geometry. Make the upper bench 24 in deep for comfortable sitting and any reclining; a lower tier at 16–20 in deep works as step, footrest, and cooler seat. These figures track manufacturer guidance: Harvia’s bench-planning FAQ calls for upper benches at least 500 mm (20 in) deep — 600 mm (24 in) or more for lying down or sitting with feet up — budgets about 600 mm of bench width per seated person, and puts step height at 350 mm (about 14 in). In a 7-ft room, set the lower tier about 16–18 in above the floor and the upper tier about 34–38 in, which brackets the 450 mm and 900 mm standard bench heights in Harvia’s installation instructions and keeps seated headroom above the top bench. Reclining needs 24 in of depth and at least 72 in of clear bench length.

Doors. Sauna doors should swing outward and must open freely from inside without a key, tool, or locking mechanism — Harvia’s own glass-door installation steps end by loosening the roller catch so the door cannot lock itself closed, and any catch you use should be a non-locking type per the door manufacturer and local code. Residential leaves are typically about 24 in wide. Hinge the leaf so the open door lies flat against an exterior wall, and keep the swing arc out of the heater’s clearance zone and the main walking path.

Aisles. Hold at least 20 in of clear floor between the bench edge (or step bench) and the opposite wall, guard rail, or heater clearance boundary; 24 in and up feels comfortable, and the family and social layouts in this guide run 30 in or more.

Electrical and code. Traditional electric heaters in these layouts run on dedicated 240 V circuits sized to the model; many one- and two-person infrared cabins run on dedicated 120 V circuits per their rating plate. Outdoor installations need outdoor-rated wiring methods, and wood-burning installations bring chimney, floor-protection, and combustion-air requirements. A licensed electrician and your local permit office are part of the project, not an optional extra.

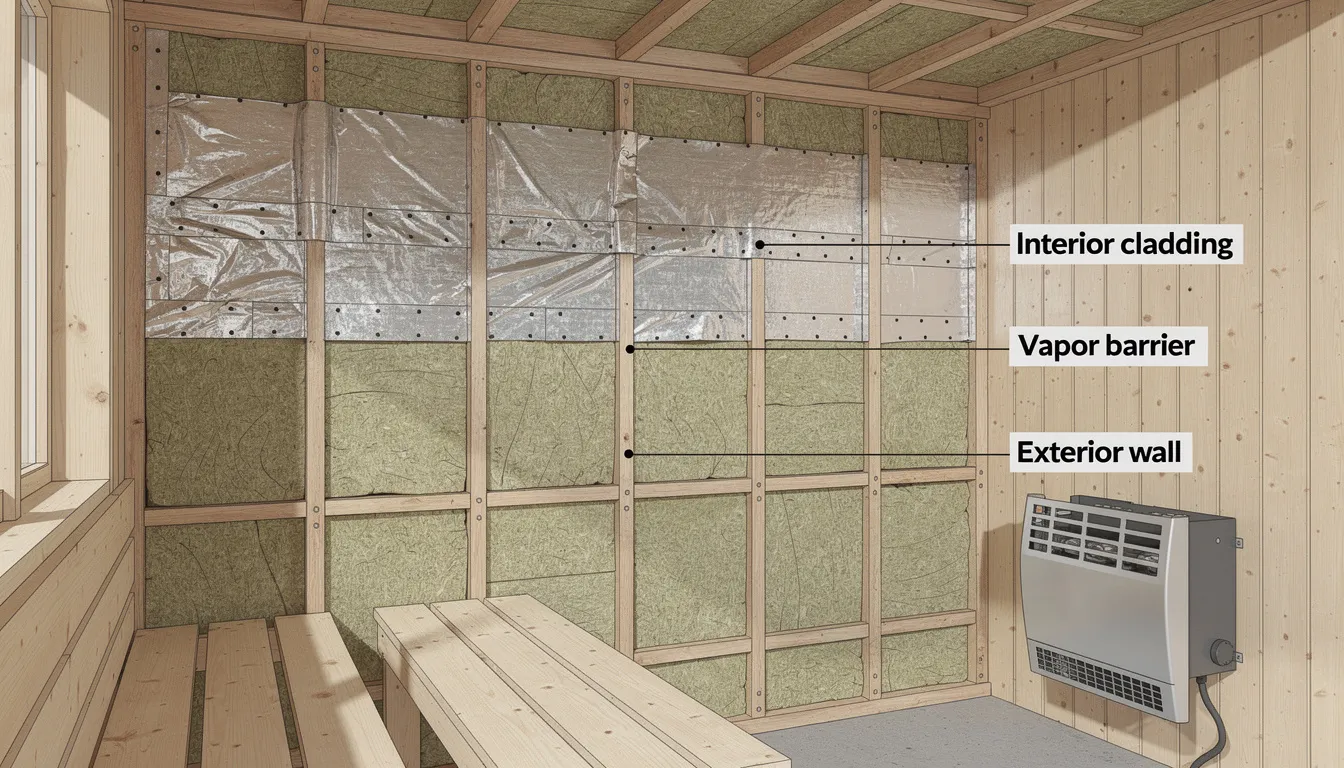

Structure and moisture. Site-built hot rooms use mineral-wool insulation, a foil vapor barrier behind the interior paneling with sealed seams, and careful sealing at penetrations — Harvia’s planning and installation instructions show the assembly as 100 mm of insulation in a 50 × 50 mm frame, aluminium paper on walls and ceiling with every seam overlapped and taped, an air gap, and then the panel boards. Outdoor units need a level, drained base confirmed for the unit’s installed operating load: the structure, heater, stones, accessories, and anticipated occupants together. If you are still weighing which construction format fits your home at all, our home sauna decision guide walks through that choice before you commit to a floor plan.

What We Corrected in This Update

This article was rebuilt in August 2026, and in the spirit of the verification standards we apply across homesauna.com, here is what changed and why:

• Room-volume math. The previous version described a 6 × 8 ft room as 250–300 cu ft. At the 7–8 ft ceilings the same article recommended, the correct figure is about 336–384 cu ft, and every heater recommendation has been re-derived from correct volumes.
• Ventilation guidance. Earlier copy gave several conflicting vent positions as if one rule fit all systems. Placement genuinely depends on whether ventilation is mechanical or gravity-driven and on the heater type, so the guidance is now separated by system, with the manufacturer manual named as the controlling document.
• Infrared clearances. A previous claim that infrared designs eliminate safety-clearance requirements was wrong and has been replaced: infrared cabins still carry manufacturer-specified side, rear, ceiling, ventilation, and door clearances.
• Heater sizing. The flat “1 kW per 50 cu ft” rule has been replaced with the manufacturer adjusted-volume method, which accounts for glass and uninsulated surfaces and for each model’s published volume range.
• Unsupported statistics. Percentage claims about infrared energy savings, installation savings from existing plumbing or HVAC, perceived-volume increases from glass, a generic 2,000-lb foundation figure, and generalizations tied to home construction years could not be substantiated and have been removed rather than qualified.
• Barrel acoustics of heat. The claim that curved barrel walls improve heat circulation was unsupported and has been replaced with what the geometry verifiably does: usable interior width narrows above bench height.
• Off-topic health and maintenance advice. Usage-frequency recommendations, disinfection routines, and wood-preservative suggestions were outside the scope of a layout guide and have been removed from this page.

Methodology

Footprints, bench dimensions, aisle widths, and door conventions in this guide reflect standard residential sauna practice as documented in manufacturer installation literature; every heater-power figure was derived on August 26, 2026 using the manufacturer adjusted-volume method and published heater volume ranges cited in the sources below. The ten floor plans were drawn editorially for this article to a stated scale as planning diagrams — they are original to homesauna.com, they are illustrative rather than construction documents, and the clearance and vent positions they show are placeholders for the figures in your specific heater or cabin manual. This guide recommends no brands or models, and it has not yet been field-reviewed by a licensed installer or electrician; where our figures and a manufacturer manual disagree, the manual is right.

Scope note: this page owns room-by-room placement — floor plans, bench geometry, heater position, door swing, aisles, and ventilation configuration. For choosing between sauna formats in the first place, see our guide to sauna types; for the full purchase decision, see our home sauna decision guide.

Bottom Line

Pick the layout that matches your household’s reality, not an aspirational version of it: the 4 × 5 ft linear room for one or two people, the 5 × 7 ft L-bench for a couple, the 6 × 8 ft two-tier for a family, and the larger social, outdoor, and suite layouts only when the space and budget genuinely exist. Whatever you choose, the same fundamentals decide whether it works: correct room-volume math, a heater selected inside its published range, ventilation planned for your specific system, an outward-swinging door, and clearances taken from the manual rather than from any article — including this one.

If you are deciding what to put in the room before you decide how to arrange it, start with our best home saunas guide, or contact us with your floor plan and we will point you to the layouts worth pricing.
